OLVENT YWF4E-400S-P102/47-G 230V push fan

  • OLVENTY YWF4E-400S-P102/47-G 230V push fan
  • OLVENT YWF4E-400S-P102/47-G 230V push fan
  • OLVENT YWF4E-400S-P102/47-G 230V push fan
  • OLVENT YWF4E-400S-P102/47-G 230V push fan
  • OLVENT YWF4E-400S-P102/47-G 230V push fan
Producer: OLVENT
Product code: WEOA_00008
Series:Wentylatory - Olvent
89,05 €
/ pc.
72,40 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

OLVENTY YWF4E-400S-P102/47-G 230V PUSH FAN

OLVENT fans are available in two variants: suction and discharge.

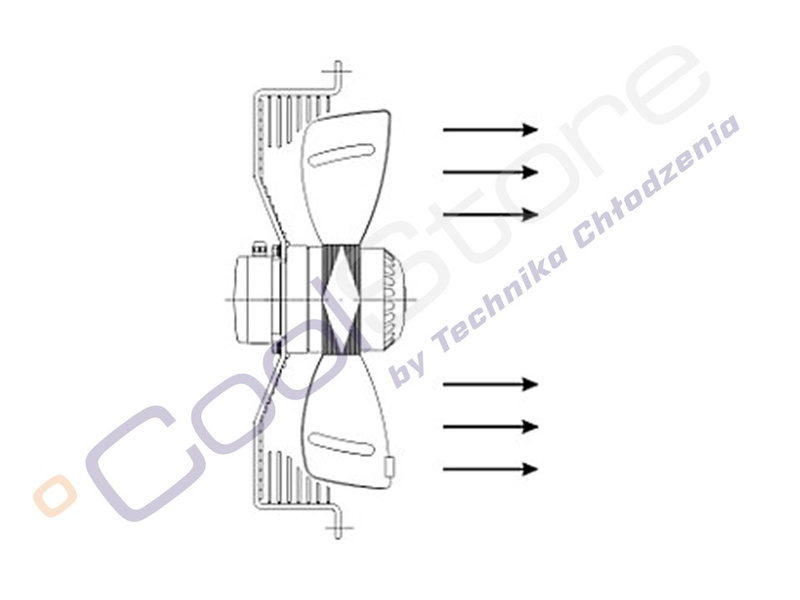

A fan is referred to as a suction fan when air flows from the impeller towards the protective grille. If the flow direction is reversed – from the protective grille to the impeller – the fan is referred to as a discharge fan.

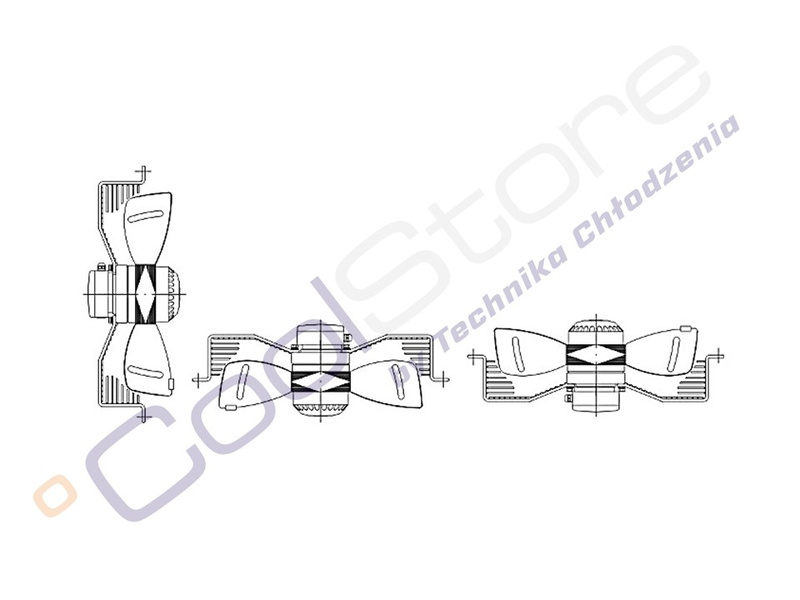

These devices are designed for installation in any plane, at any angle, both vertically and horizontally.
They are equipped with an asynchronous motor, powered by single-phase or three-phase current.
OLVENT fans are equipped with ball bearings as standard, which ensures a longer service life and reliable operation even in demanding conditions.
Single-phase versions are equipped with a starting capacitor as standard.
Each fan has a 1-metre long power cord connected to an electrical box.

Tech specs:
Diameter:
400 mm
Power supply:
230V
Flow:
blowing
Rated speed:
1380 obr/min
Air volume:
3760m3/h
Input:
180W
Operating temperature range:
-30~60C
Sound level:
67dB
Internal thermal protection:
150±5°C
IP Protection:
IP54
Weight:

net

7kg
Pictures:
illustrative
Manufacturer/responsible entity in the EU :
Technika Chłodzenia Sp. z o.o. ul. Pyskowicka 24 41-807 Zabrze tel. 32 37 37 930 fax. 32 37-37-931 e-mail: tchw@tchw.pl
