OLVENTY YWF4E-500B-P137/35-G 230V PUSH FAN
OLVENT fans are available in two variants: suction and discharge.

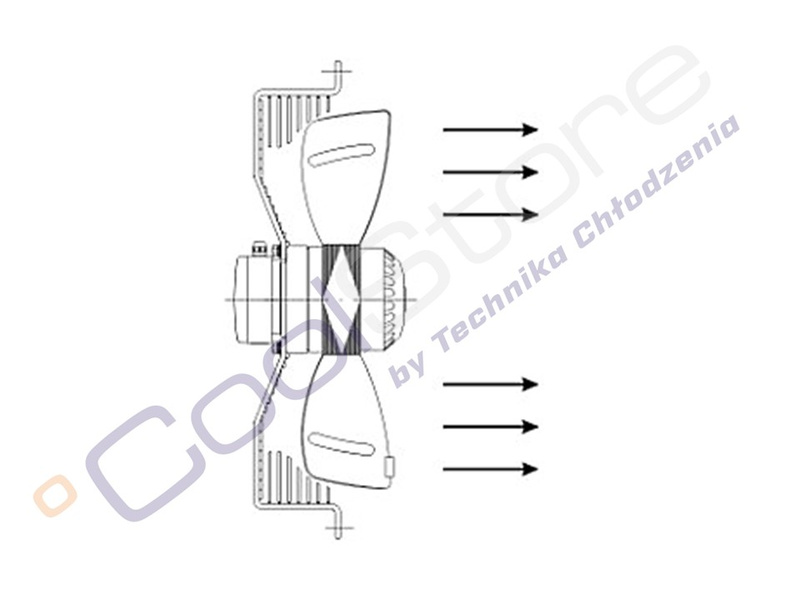

A fan is referred to as a suction fan when air flows from the impeller towards the protective grille. If the flow direction is reversed – from the protective grille to the impeller – the fan is referred to as a discharge fan.

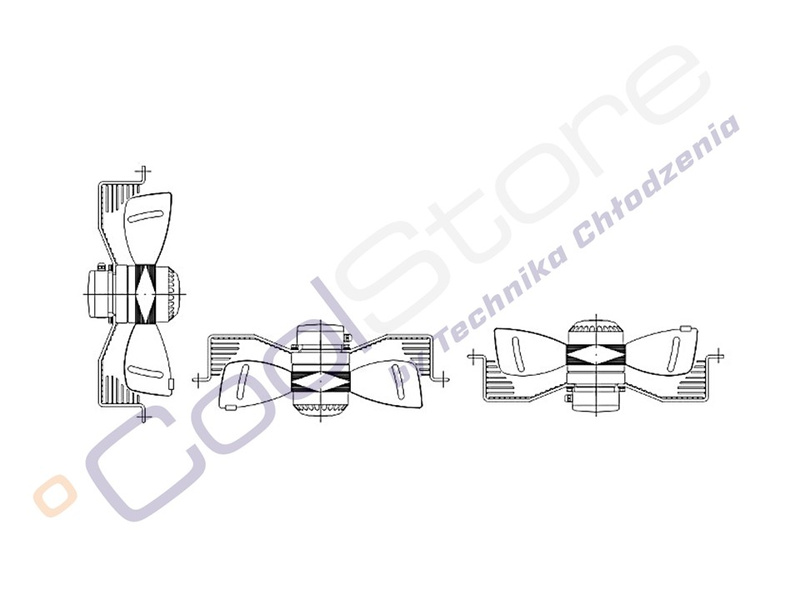

These devices are designed for installation in any plane, at any angle, both vertically and horizontally.
They are equipped with an asynchronous motor, powered by single-phase or three-phase current.
OLVENT fans are equipped with ball bearings as standard, which ensures a longer service life and reliable operation even in demanding conditions.
Single-phase versions are equipped with a starting capacitor as standard.
Each fan has a 1-metre long power cord connected to an electrical box.
Diameter: | 500 mm |
Power supply: | 230V |
Flow: | blowing |
Rated speed: | 1320 min-1 |
Air volume: | 6870m3/h |
Input: | 380 W |
Operating temperature range: | -30~60C |
Sound level: | 72dB |
Internal thermal protection: | 150±5°C |
IP Protection: | IP54 |
Weight:![]() net | 10 kg |
Pictures: | illustrative |
Manufacturer/responsible entity in the EU : | Technika Chłodzenia Sp. z o.o. ul. Pyskowicka 24 41-807 Zabrze tel. 32 37 37 930 fax. 32 37-37-931 e-mail: tchw@tchw.pl |
