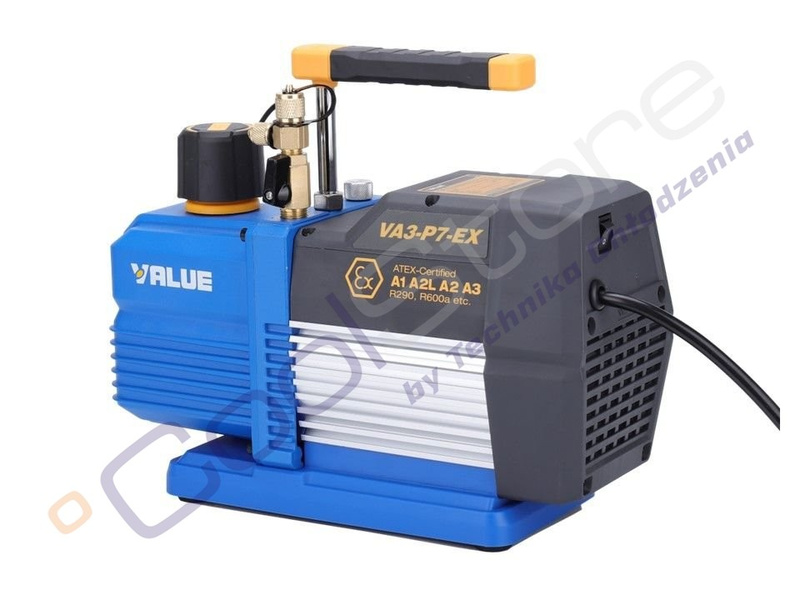

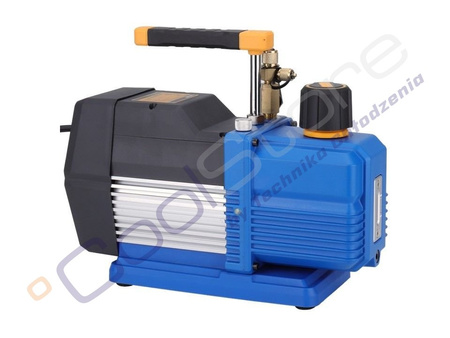

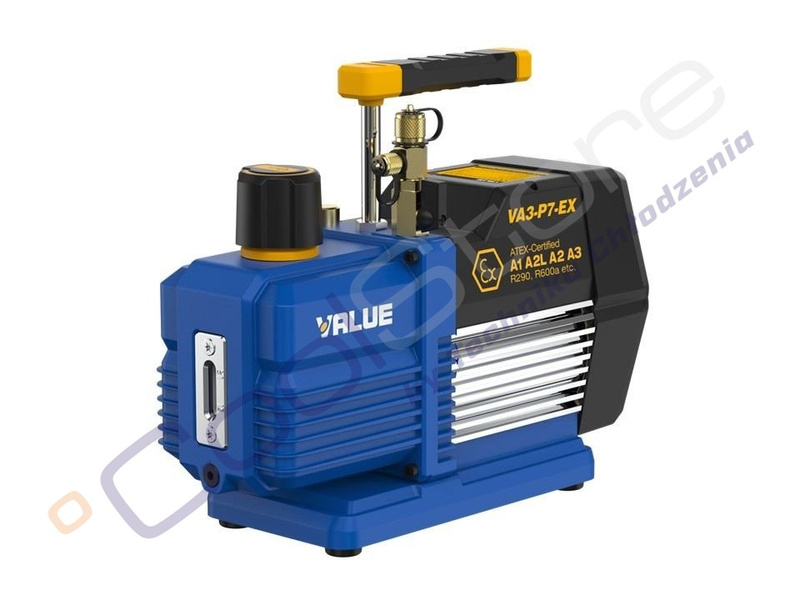

VALUE VA3-P7-EX - VACUUM PUMP
The VALUE VA3-P7-EX two-stage vacuum pump is designed for operation with refrigerants from the HFC, HFO, A1, A2L, A2, and A3 groups. It performs well in demanding conditions, ensuring high efficiency and safe operation.

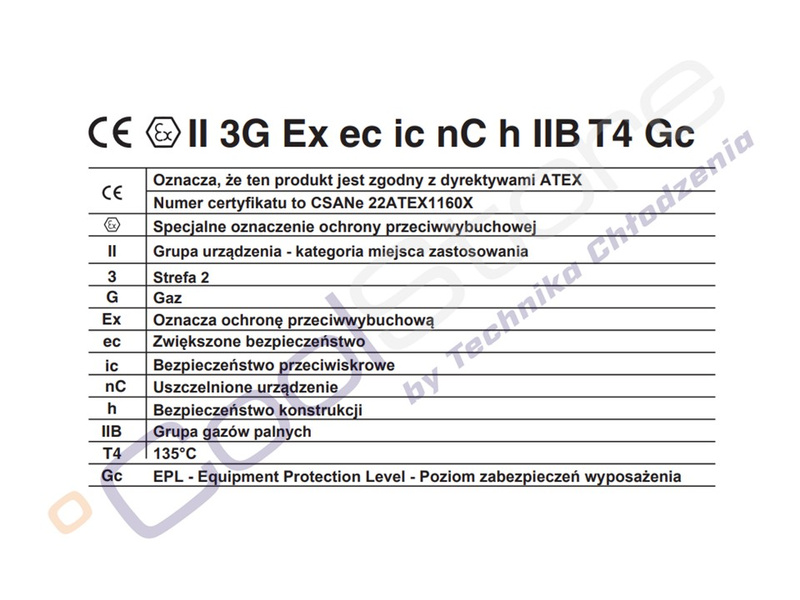

The pump is two-stage and compatible with refrigerants such as R290 and R600a. It is manufactured with spark-proof protection, which guarantees safe use in potentially explosive environments. It also holds the ATEX CSANe 22ATEX1160X certification, confirming compliance with strict safety standards.

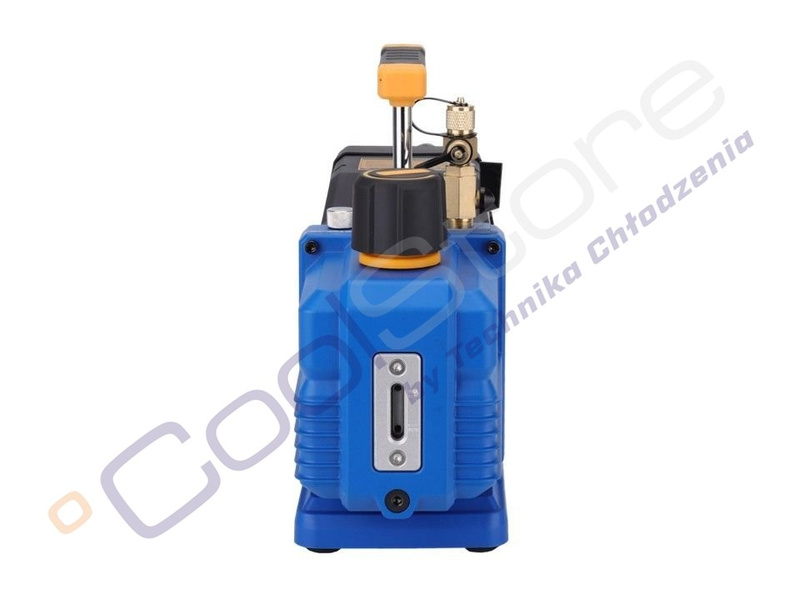

In addition, the pump is equipped with a large sight glass, making it easy to monitor the oil level. An important feature is also the gas ballast valve, which prevents moisture from entering the oil inside the pump. This significantly extends the service life of the device and maintains its reliability.
Promotional set:

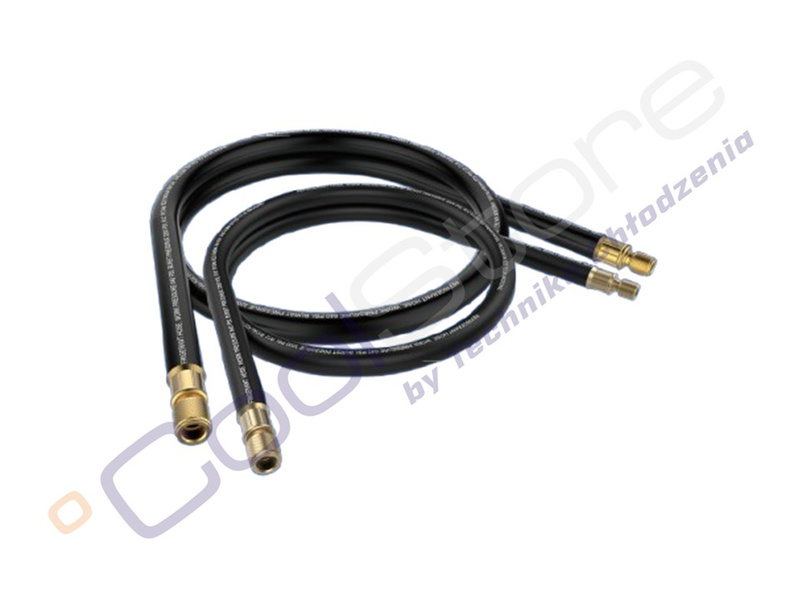

The pump comes with a VALUE VHB-3 service hose with a length of 180 cm, fitted with 1/4"–1/4" connections. The hose is made of high-quality, flexible material resistant to refrigerants and operating pressure, ensuring reliability and safe use. Its length makes it easy to conveniently connect the pump to refrigeration and air conditioning systems, while the durable fittings guarantee tight and long-lasting connections.
VA3-P7-EX | |
| Flow: | 198 l/min / 7 CFM |
| Vacuum level: | 0,2 Pa / 15 mikronów |
| Engine power: | 0,55 kW (0,75 KM) |
| Compression Stages: | 2 |
| Machine Power Supply: | 230 V |
| Frequency: | 50 - 60 Hz |
| Power Cord Length: | 310 cm |
| Motor Speed at 50 Hz: | 2880 obr/min (±50) |
| Noise: | 68 dB |
| Inlet ports: | 1/4" i 3/8" SAE |
| Oil Capacity : | 0,426 l |
| Oil Type: | mineral, viscosity: 46 mm²/s |
| Dimensions: | 346 x 130 x 287 mm |
Weight: net | 11,8 kg |
| IP Protection: | IP54 |
| Operating Temperature: | -1 - 40°C |
| Storage temperature: | -10 - 50°C |
| Minimum Oil Temperature for Startup: | -1°C |
| Shut-Off Valve: | yes (manual) |
| Exhaust Plug Thread: | M33 x 1,5 mm |
| Vacuum Gauge: | Lack |
| Motor Type: | AC |
| Package: | Box |
| Pictures: | illustrative |
VHB-3 | |
| Connector: | 1/4" - 1/4" |
| Length: | 180 cm |
