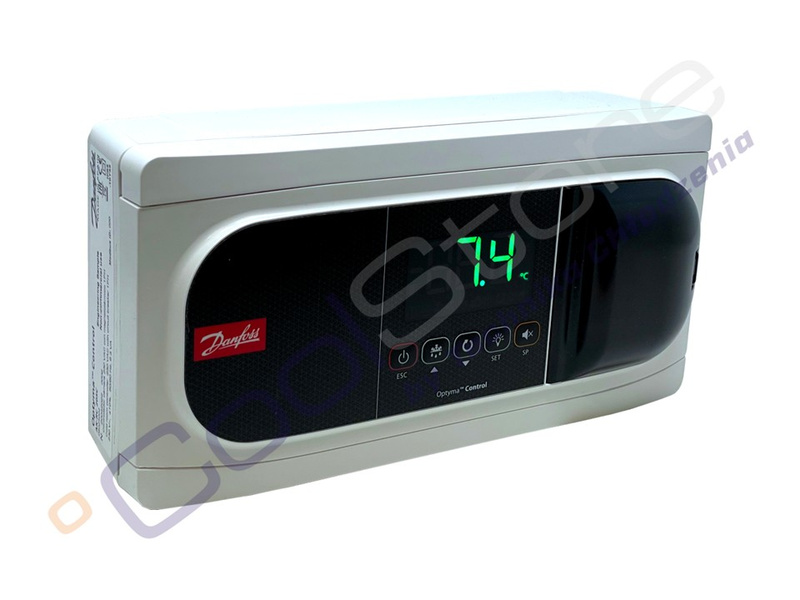

DANFOSS AK-RC 205C - CONTROLLER 080Z5002
The DANFOSS AK-RC 205C refrigeration controller is a modern device designed for precise and reliable management of cold rooms in both commercial and industrial applications. With a 230 V AC power supply and a high IP65 protection rating, it performs perfectly in demanding environments, offering resistance to moisture, dust, and temperature fluctuations. Its solid construction and advanced electronic design ensure long service life and stable operation of the entire refrigeration system.
The DANFOSS controller provides extensive configuration and communication options via the RS485 Modbus interface, allowing easy integration with a central BMS supervision system. It enables comprehensive control of the condensing unit, fans, defrost heaters, and expansion valves, significantly improving the energy efficiency of the installation. The option to connect an external display ensures convenient access to operational data and simplifies user interaction.
Another advantage of the DANFOSS AK-RC 205C model is its energy efficiency — with a power consumption of only 6.3 VA, it is an exceptionally economical solution that helps reduce the operating costs of refrigeration systems. The device complies with CE and RoHS standards, confirming its high manufacturing quality and adherence to European safety and environmental protection requirements.
By choosing the DANFOSS AK-RC 205C controller, users gain reliability, precise control, and ease of operation. It is the ideal solution for professional refrigeration installations that demand effective temperature management, optimal energy consumption, and seamless integration with modern building automation systems.
| Frequency [Hz]: | 50 Hz ,
50/60 Hz |
| Function: | management of cold rooms |
| Application: | condensing unit |
| Supply voltage [V] AC: | 230 V |
| IP Protection: | IP65 |
| Controller type: | Optyma Control. 1phase (2HP) |
| Display: | yes |
| Power consumption [VA]: | 6.3 VA |
| Electrical protection: | yes (16A) |
| Digital outputs: | 1 SPDT 16A ,
2 SPDT 20A ,
2 SPST 16A |
| Analog inputs: | 2 NTC |
| Wejścia cyfrowe: | 1 |
| Wizard Menu: | yes |
| Temperature Control: | yes |
| Advanced defrost function: | no |
| MODbus: | yes |
| Data logger: | option with PR-SC4 |
| Pictures: | illustrative |
