ZIEHL-ABEGG FN071-SDK.6F.V7P1- EXHAUST FAN 141773

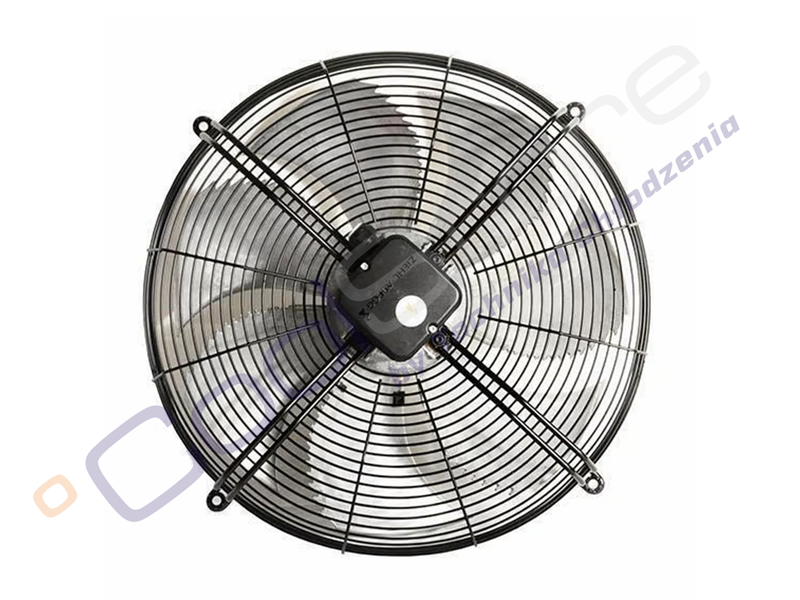

The ZIEHL-ABEGG FN071-SDK.6F.V7P1 fan is an axial pull-type (suction) fan with a 710 mm impeller diameter, designed for industrial, refrigeration, and air-conditioning applications. It is supplied as a complete unit with a mounting ring, protective guard, and terminal box.
The unit is powered by a 3-phase 400 V / 50 Hz supply and operates at approximately 900 or 690 rpm (depending on the wiring configuration). Power consumption is about 940 W / 620 W, with a rated current of approx. 1.7 A / 1.05 A, ensuring good performance with stable continuous operation.
The maximum air flow reaches approximately 13,600 m³/h, making the fan well suited for condensers, evaporators, and large ventilation systems. Specially profiled bionic blades ensure high efficiency and reduced noise levels.
The fan has an IP54 degree of protection, THCL 155 insulation class, and is designed for continuous operation (S1) at temperatures up to approximately +70°C. Its robust construction, dynamic balancing, and weight of around 26 kg ensure durability and reliability in demanding industrial environments.
| Diameter: | 710 mm |
| Power supply: | 380 V / 50 Hz |
| Flow: | Suction |
| Rated speed: | 900 / 690 obr./min |
| Power consumption: | ~1,7 A / 1,05 A |
| Air volume: | 13 600 – 14 600 m³/h |
| Input: | ok. 940 W / 620 W |
Weight: net | 26 kg |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Niemcy tel. +49 7940 16 0 info@ziehl-abegg.de |
