ZIEHL-ABEGG FB056-VDK.4I.V4L - EXHAUST FAN 101654

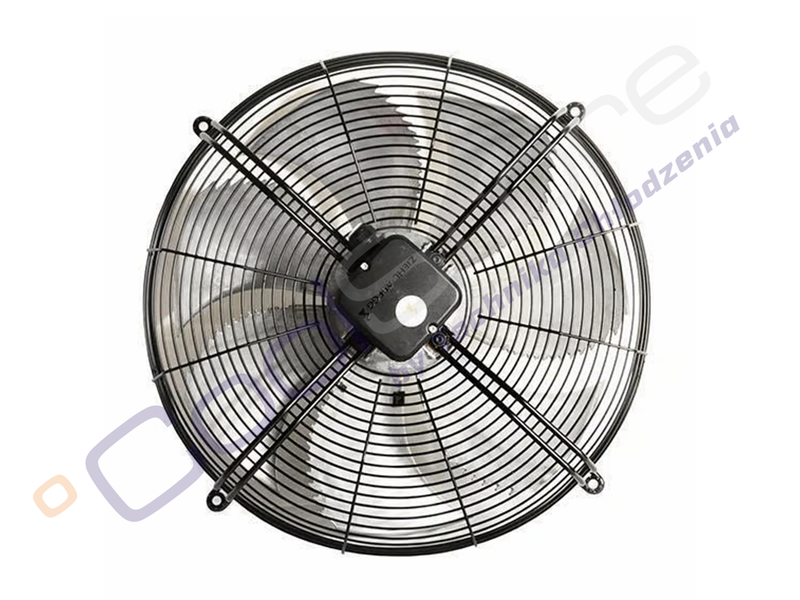

The FB056‑VDK.4I.V4L fan is an industrial axial fan designed for use in air suction and exhaust systems. Its robust construction with a 560 mm diameter impeller ensures durability and reliability in demanding conditions.

The device is powered by a three-phase 400 V supply and delivers 0.64–0.84 kW at a rotational speed of 1090–1360 rpm, allowing an airflow of approximately 9600 m³/h. Its IP54 protection rating safeguards the fan against dust and water splashes, while the noise level is around 79 dB(A).

The FB056‑VDK.4I.V4L is ideal for extracting air from large industrial, cooling, and ventilation spaces. Its design with a protective grille ensures safety and efficient suction.

The fan weighs approximately 13 kg, measures 730 × 730 × 200 mm, and operates in temperatures ranging from -25 °C to +40 °C. It is a reliable solution for both new installations and the modernization of existing ventilation systems.

Tech specs:

Diameter:	560 mm
Power supply:	400 V, 50 Hz
Flow:	Suction
Rated speed:	1360 obr/min.
Air volume:	9600 m3/h
Input:	840 W
Weight: net	13 kg
Pictures:	illustrative
Manufacturer/responsible entity in the EU :	ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Niemcy tel. +49 7940 16 0 info@ziehl-abegg.de

CATALOG CARD Download
