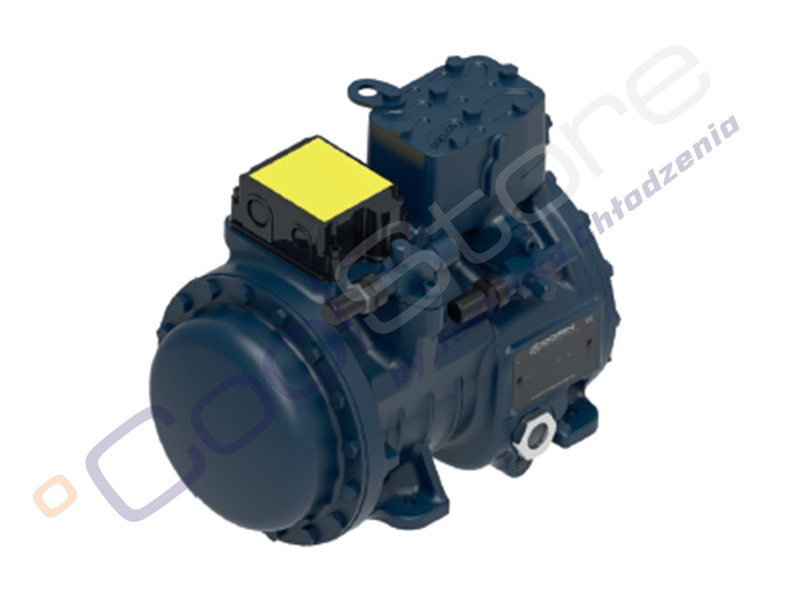

DORIN H101CS - COMPRESSOR H1L0102

Semi-hermetic DORIN compressors are modern solutions designed for maximum efficiency and reliability. Engineered to meet market demands and operate with new refrigerants (HFC and HFO), they combine high performance with quiet and stable operation. The capacity range of DORIN compressors is from 4.42 to 244.78 m³/h, with nominal power from 0.5 to 90 HP.

DORIN represents Italian precision and quality confirmed by EN ISO 9001 certification. All compressors are 100% manufactured in Italy, ensuring the highest production standards. They are distinguished by low vibration levels, inverter compatibility, and a patented oil return system that minimizes losses and enhances reliability.

The H101CS model is a compact semi-hermetic compressor with a capacity of 6,71 m³/h, designed to operate in demanding refrigeration systems. It combines high build quality with the ability to run across a wide frequency range from 30 to 70 Hz, allowing flexible adaptation to various operating conditions.

The H101CS semi-hermetic compressor features a design that ensures excellent tightness and high durability. Made from top-quality components, it guarantees reliability and a long service life. It is fully compatible with HFC and HFO refrigerants, making it suitable for modern refrigeration systems. Additionally, it can be equipped with various accessories to further enhance its functionality. Quiet operation and compact dimensions make the H101CS model an ideal solution for installations where performance, reliability, and space savings are essential.

Tech specs:
Type:
Semi-hermetic piston compressor
Performance:
6,71 m3/h
Number of cylinders:
2 [eng]
Power supply:
380-420 V / 3 / 50 Hz;
Rotor lock current:
13,8 A
Maximum operating current:
2.9 A
Crankcase heater:
tak
Discharge:
12 mm
Ssuction:
16 mm
Factory flooded with oil:
yes POE32
Oil charge:
1l
Weight:

net

37 kg
Pictures:
illustrative
Manufacturer/responsible entity in the EU :
Officine Mario Dorin Via Aretina, 388 50061 Compiobbi (FI), Italy Tel: +39-055-62321.1 Fax: +39-055-62321.380 dorin@dorin.com
