DORIN H300CS - COMPRESSOR
Semi-hermetic DORIN compressors are modern solutions designed for maximum efficiency and reliability. Engineered to meet market demands and operate with new refrigerants (HFC and HFO), they combine high performance with quiet and stable operation. The capacity range of DORIN compressors extends from 4.42 to 244.78 m³/h, with nominal power ratings from 0.5 to 90 HP.
DORIN represents Italian precision and quality, certified according to EN ISO 9001. All compressors are 100% manufactured in Italy, ensuring the highest production standards. They are distinguished by low vibration levels, inverter compatibility, and a patented oil return system that minimizes losses and increases reliability.

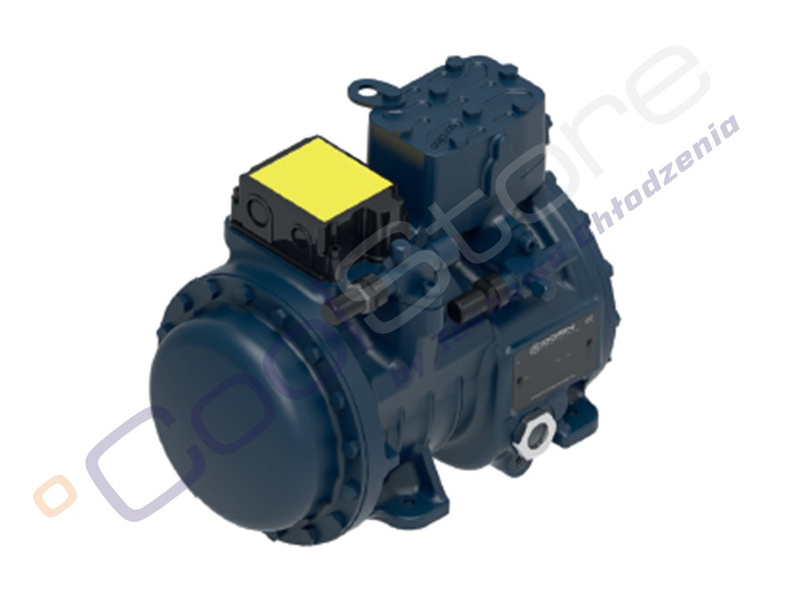

The H300CS model is a compact semi-hermetic compressor with a displacement of 15.94 m³/h, designed for operation in demanding refrigeration systems. It combines high build quality with the ability to operate across a wide frequency range from 30 to 70 Hz, allowing flexible adaptation to various operating conditions.
The H300CS compressor is designed for medium evaporating temperature applications, making it a versatile solution for standard refrigeration systems. Its construction ensures high tightness and durability, while the optimized valve system guarantees stable operation under variable loads. This model is compatible with HFC and HFO refrigerants, and the option to equip it with additional accessories allows easy customization for specific applications.
The compressor cooling capacity table is provided in the product data sheet available in the “Downloads” section.
| Type: | Semi-hermetic piston compressor |
| Performance: | 15,94 m³/h |
| Number of cylinders: | 2 [eng] |
| Power supply: | 380-420 V / 3 / 50 Hz; |
| Rotor lock current: | 34,0 A |
| Maximum operating current: | 7,5 A |
| Crankcase heater: | tak |
| Discharge: | 16 mm |
| Ssuction: | 28 mm |
| Factory flooded with oil: | yes POE32 |
| Oil charge: | 1,4 L |
Weight: net | 54 kg |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | Officine Mario Dorin Via Aretina, 388 50061 Compiobbi (FI), Italy Tel: +39-055-62321.1 Fax: +39-055-62321.380 dorin@dorin.com |
