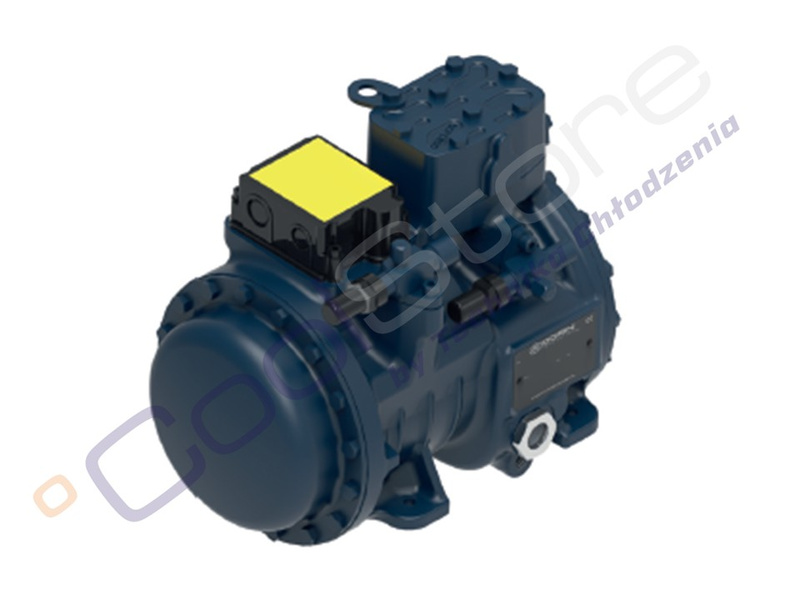

DORIN H392CS - COMPRESSOR H2Q0401
DORIN semi-hermetic compressors are modern solutions designed for maximum efficiency and reliability. Engineered to meet market demands and operate with new refrigerants (HFC and HFO), they combine high performance with quiet and stable operation. The capacity range of DORIN compressors is from 4.42 to 244.78 m³/h, with nominal power from 0.5 to 90 HP.
DORIN represents Italian precision and quality confirmed by EN ISO 9001 certification. All compressors are 100% manufactured in Italy, ensuring the highest production standards. They are distinguished by low vibration levels, inverter compatibility, and a patented oil return system that minimizes losses and increases reliability.
The H392CS model is a compact semi-hermetic compressor with a capacity of 23.31 m³/h, designed for operation in demanding refrigeration systems. It combines high build quality with the ability to operate across a wide frequency range from 30 to 70 Hz, allowing flexible adaptation to various operating conditions.
The H392CS compressor is designed for operation at medium evaporating temperatures, making it a versatile solution for standard refrigeration installations. Its construction ensures high tightness and durability, while the optimized valve system guarantees stable performance under variable loads. This model is compatible with HFC and HFO refrigerants, and the option to equip it with additional accessories allows easy adaptation to specific applications.
The cooling capacity table for the compressor is provided in the product data sheet available in the “Downloads” section.
| Type: | Semi-hermetic piston compressor |
| Performance: | 23,31 m3/h |
| Number of cylinders: | 2 [eng] |
| Power supply: | 380-420 V / 3 / 50 Hz; |
| Rotor lock current: | 54,0 A |
| Maximum operating current: | 11,3 A |
| Crankcase heater: | tak |
| Discharge: | 16 mm |
| Ssuction: | 28 mm |
| Factory flooded with oil: | yes POE32 |
| Oil charge: | 1,4 L |
Weight: net | 56 kg |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | Officine Mario Dorin Via Aretina, 388 50061 Compiobbi (FI), Italy Tel: +39-055-62321.1 Fax: +39-055-62321.380 dorin@dorin.com |
