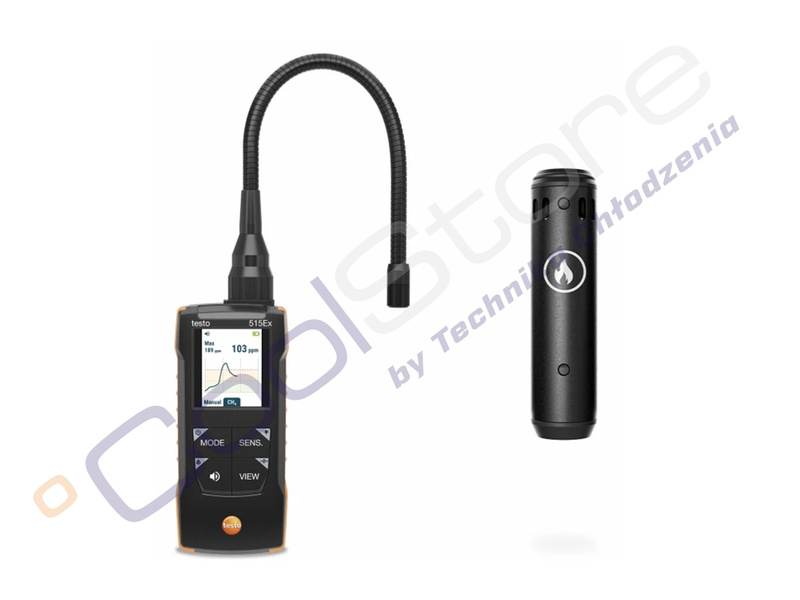

TESTO 514 EX - FLAMMABLE GAS + H2 LEAK DETECTOR WITH 1 SENSOR + ATEX 0563 1515
Certified TESTO 515 Ex detector guarantees safe operation in explosion hazard zones (ATEX). The device features an exceptional sensitivity from 1 g/year. Thanks to the advanced suction system, the response and recovery time is under 2 seconds.
The compact housing conceals modern technology that ensures precision and speed of operation. Instant leak localization eliminates the risk of overlooking micro-leaks. The tool is ideal for dynamic inspections of large installations.
The flexible, durable probe easily reaches hard-to-access places and valves. The color display offers three intuitive data presentation modes. Results can be tracked using both a numerical value and a bar graph.
TESTO 515 EX allows for quick sensor replacement and customization of the equipment to the specific task. The detector senses both flammable gases and refrigerants. It is a universal and versatile solution for professionals.
Tech specs:
| Measuring range : | Metan (CH₄) - 1 ppm do 1,0 % obj. CH₄ ,
Propan (C₃H₈) - 1 ppm do 1,0 % obj. C₃H₈ ,
Butan (C₄H₁₀) - 1 ppm do 1,0 % obj. C₄H₁₀ ,
Wykrywanie nieszczelności H₂ - 1 ppm do 1,0 % obj. H₂ |
| Resolution : | Metan (CH₄) - 1 ppm / 0,1 % obj. (> 999 ppm) ,
Propan (C₃H₈) - 1 ppm / 0,1 % obj. (> 999 ppm) ,
Butan (C₄H₁₀) - 1 ppm / 0,1 % obj. (> 999 ppm) ,
Wykrywanie nieszczelności H₂ - 1 ppm / 0,1 % obj. (> 999 ppm) |
General Specifications | |
| Reaction time: | <2 sek. |
| Parametry wykrywania: | ppm; vol.%; %LEL |
| Operating temperature : | -10 do +50 °C |
| Dimensions: | 132 x 60 x 37 mm (LxWxH) |
Weight: net | 291 g |
| Operating humidity: | 10 do 80 %RH |
| Ochrona przeciwwybuchowa: | ATEX/UL/CSA 60079-0 ,
UL/SA 60079-11 ,
Zone 2 |
| Storage temperature : | -20 do +60 °C |
| Battery life : | 8 h |
| Sampler length : | 295 mm |
| Sensitivity: | 1 g/a – wysoki ,
14 g/a – niski ,
3 g/a – wysoki |
| Sensor life: | 2 lata |
| Alarm wycieku: | alarm wizualny i dźwiękowy; wibracja |
| Refrigerants: | metan; propan; butan; wodór |
| Pictures: | illustrative |
