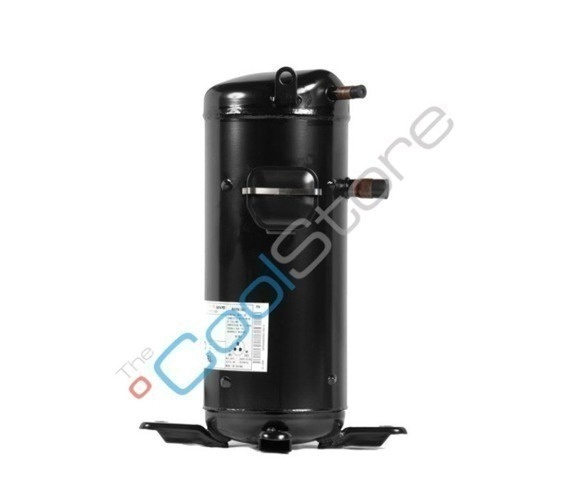

Compressor Scroll Panasonic C-SBP205H38B 16,9 kW R410A 400V

  • Compressor Scroll Panasonic
  • Compressor Scroll Panasonic C-SBP205H38B 16,9 kW R410A 400V
Producer: Panasonic
Product code: C-SBP205H38B
Series:Sprężarki scroll Panasonic
801,96 €
/ pc.
652,00 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

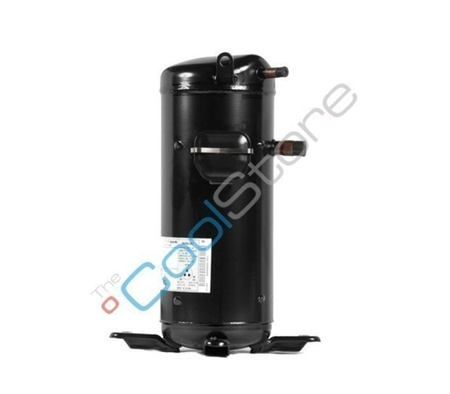

Compressor Scroll  Panasoni C-SBP205H38B 16,9 kW R410A 400V



TECHNICAL DATA

Model

Displacement

Refrigerant

 Voltage Evaporating
temperature range

Lubricant typ

 Weight Sound
level
C-SBP205H38B 66,8 cm3 R410A 380-415V / 50Hz M/HBP

FV68S

 40 kg 61 dB

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R410A

Condensing Temp.

 -15ºC -10ºC -6,7ºC 0ºC +4,4ºC +7,2ºC +10ºC +12ºC
C-SBP205H38B 54,4 ºC - 8,89 kW 10,05 kW 12,87 kW 15,15 kW 16,80 kW 18,63 kW 20,06 kW
45 ºC 8,41 kW 10,16 kW 11,50 kW 14,81 kW 17,49 kW 19,43 kW 21,60 kW 23,29 kW



 TECHNICAL DRAWING





Tech specs:
Refrigerant:
R410a
Power supply:
220/240V - 50Hz
Nominal capacity:
8763W / 29900Btu
Współczynnik EER:
9.1 Btu/W.h
Współczynnik COP:
2.67 W/W
Oil charge:
750 cm3
Weight:

net

27.2 kg
Factory flooded with oil:
Yes
Pictures:
illustrative
