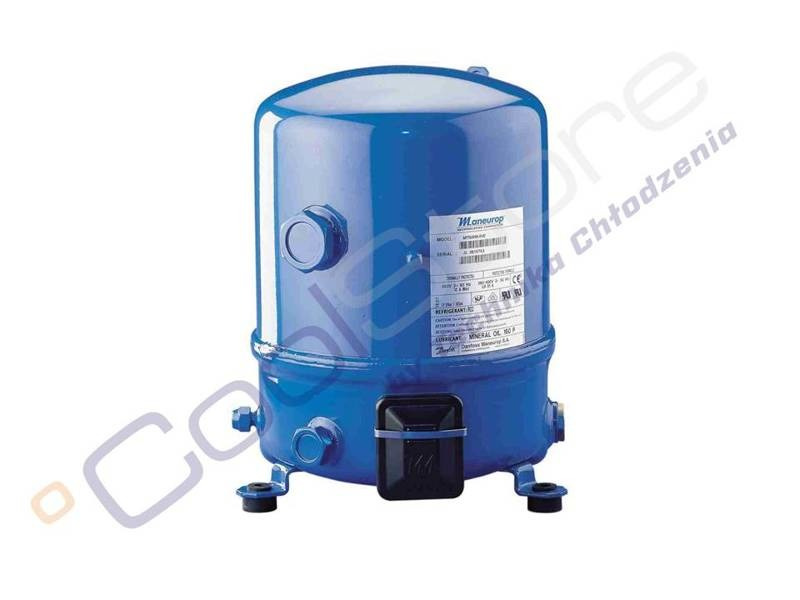

Danfoss Maneurop Compressor MTZ28

  • Hermetic reciprocating compressor.
  • Danfoss Maneurop Compressor MTZ28
Producer: DANFOSS
Product code: SPMA_011
Series:Sprężarki niebieskie Danfoss Maneurop
1 451,40 €
/ pc.
1 180,00 €
net / pc.
Add to wish list
Danfoss Maneurop Compressor  MTZ28

TECHNICAL DATA

Model

Displacement

 Refrigerant Voltage Connection

Lubricant (Charge/Type)

 Weight
MTZ28 48.1 cm3

R404A - R507A -
R134a - R407C

 400V / 50Hz &
460V / 60 Hz		 Rotalock 1"

POE - 160PZ / 1l

 23 kg

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R-404A

Condensing Temp.

 -30ºC -25ºC -20ºC -15ºC -10ºC -5ºC 0ºC +5ºC +10ºC
MTZ28 55 ºC - 787 W 1260 W 1832 W 2522 W 3348 W 4328 W 5480 W 6821 W
45 ºC  759 W 1250 W 1846 W 2566 W 3427 W 4447 W 5644 W 7037 W 8642 W
Tech specs:
Part number:
MTZ28JE4AVE
,
MTZ28-4VI
,
MTZ28-4VM
Wydajność wolumetryczna:
8,4 m3/h (2900 obr/min)
Displacement :
48.1 cm3
Refrigerant:
R404a / R507A / R134a / R407C / R407A / R407F
Oil Type:
POE 160PZ / 1l
Factory flooded with oil:
Yes
Weight:

net

23 kg
Pictures:
illustrative
