ASPEN Pump Mini Orange

  • ASPEN MINI ORANGE Pump is designed to be installed above the false ceiling where possible, behind wall mounted evaporators and in plastic conduit
  • ASPEN Pump Mini Orange
  • ASPEN Pump Mini Orange
  • ASPEN Pump Mini Orange
  • ASPEN Pump Mini Orange
Producer: ASPEN
Product code: Mini Orange
100,53 €
70,37 €
/ pc.
81,74 €
57,21 €
net / pc.
Add to wish list

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

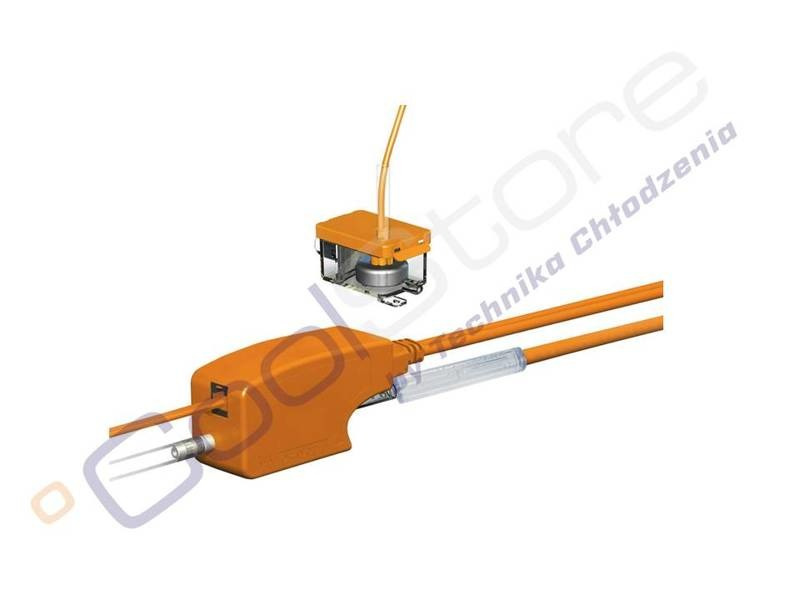

ASPEN Pump Mini Orange


Connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator, condensate water can be pumped away to a suitable drain. Within the Orange kit there are two reservoirs to choose from, which must sit flat and horizontal. One allows you to connect directly to the drain hose of the evaporator and the second reservoir can be placed directly into a condensate tray.



*offer is addressed to companies and service installation of HVACR industry



Tech specs:
Max. flow:
12 L/h
Max. rec. head:
10 m
Max. suction lift:
2 m
Sound level:
Power source:
230 V, 50 Hz
Non continuous
Max. unit output:
16 kW / 54 tys. Btu/h
Max. water temperature:
40°C / 104°F
Discharge tube:
6mm ID
IP Protection:
Safety switch:
3.0A Normally closed
Thermal protection:
Fully potted:
Self priming:
