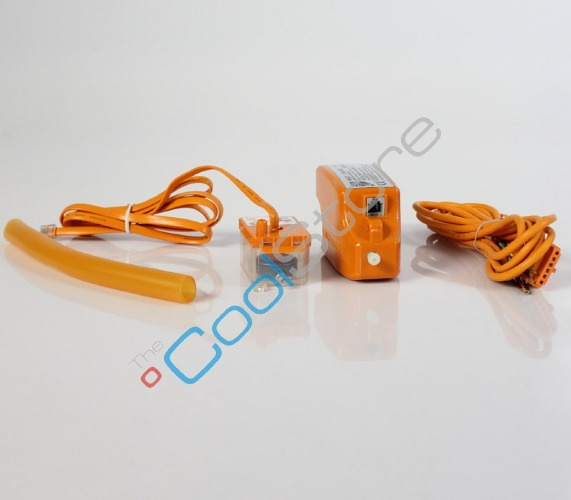

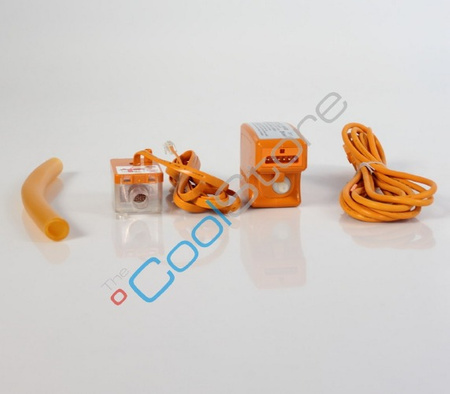

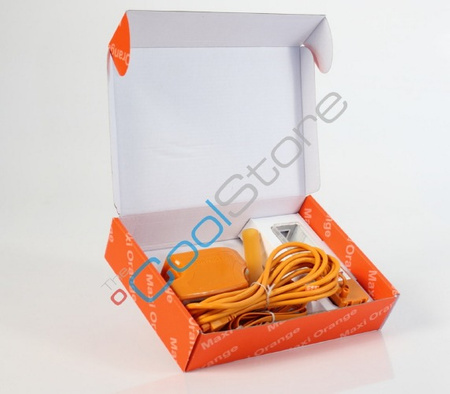

ASPEN Pump Maxi Orange

  • ASPEN MINI ORANGE Pump is designed to be installed above the false ceiling where possible, behind wall mounted evaporators and in plastic conduit
  • ASPEN Pump Maxi Orange
  • ASPEN Pump Maxi Orange
  • ASPEN Pump Maxi Orange
  • ASPEN Pump Maxi Orange
Producer: ASPEN
Product code: Maxi Orange
Series:0
89,06 €
/ pc.
72,41 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

ASPEN Pump Maxi Orange

Connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator, condensate water can be pumped away to a suitable drain. Within the Orange kit there are two reservoirs to choose from, which must sit flat and horizontal. One allows you to connect directly to the drain hose of the evaporator and the second reservoir can be placed directly into a condensate tray.

Tech specs:
Max. flow:
35 L/h
Max. rec. head:
15 m
Max. suction lift:
2 m
Sound level:
35dB(A)
Power source:
230 V, 50 Hz
Rated:
Non continuous
Class:
II
Max. unit output:
46 kW / 157,000 Btu/h
Max. water temperature:
40°C / 104°F
Discharge tube:
6mm ID
IP Protection:
IP21
Safety switch:
3.0A Normally closed
Thermal protection:
✓
Fully potted:
✓
Self priming:
✓
