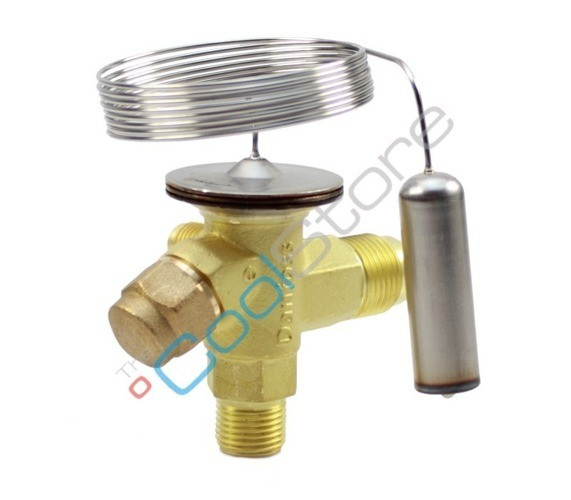

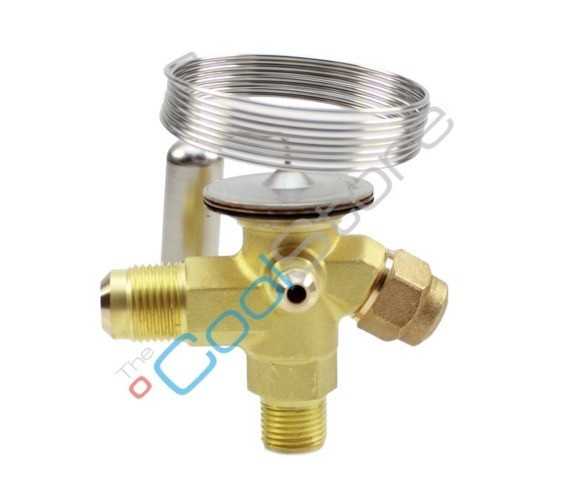

Thermostatic Expansion Valve Danfoss TEN2 068Z3349 R134a

Thermostatic expansion valve regulates injection of refrigerant into the evaporator. Injection is controlled by overheating.

Producer: DANFOSS

Product code: AUDA_0744

Series:Danfoss_38_40

Size:

Our price:

120,23 €

/ pc.

97,75 €

net / pc.

Quantity:

Thermostatic Expansion Valve Danfoss TEN2 068Z3349 R134a

Thermostatic expansion valves are designed for injection of liquid refrigerant to the evaporator in the refrigeration and air conditioning systems with fluorinated agents.Valves work with a changeable team of nozzles, which facilitates their storageand maintenance.

Characteristic	Value
Type	TEN 2
Capillary tube length [mm]	1.500 mm
Equalization connection type	Flare
Inlet connection type	Flare
Inlet size	3/8”
Max. Working Pressure [bar]	34,0 bar
Outlet connection type	Flare
Outlet/Equalization size [in]	½" \| ¼”
Refrigerant(s)	R134a
Static Superheat (SS) [°C]	4,0
Temperature range [°C]	-40 ~ 10 °C

Tech specs:

Pictures:	illustrative
Manufacturer/responsible entity in the EU :	Danfoss Headquarters, Nordborgvej 81, 6430 Nordborg, Dania, danfoss@danfoss.com +45 7488 2222 , EVCO S.p.A. Via Feltre 81, 32036 Sedico (BL) ITALY phone +39 0437 8422 \| fax +39 0437 83648 email info@evco.it \| web www.evco.it , "Termo Plus sp. z o.o. Wilanowska 2, 05-509 Józefosław, Polska +48 15 687 49 91 biuro@esco.eu.com"
