Orifice Danfoss for TE2 nr 0X 068-2002

  • Orifice for Thermostatic Valves
  • Orifice Danfoss for TE2 nr 0X 068-2002
Producer: DANFOSS
Product code: AUDA_0780
Series:Danfoss_38_40
27,61 €
/ pc.
22,45 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Orifice Danfoss for TE2 nr 0X 068-2002



Orifice assemblies with filters, designed for use with either solder adapter product configurations or standard product configurations.
The rated capacity is based on:
Evaporating temperature te = +5°C for range N (–40 - 10°C) and te = –30°C for range B (–60 - –20°C)
Condensing temperature tc = +32°C
Refrigerant temperature ahead of valve tl = +28°C

Tech specs:
Rozmiar dyszy:
0X
Type:
Orifice
Wydajność znamionowa R134a, Zakres N [kW]:
0,40 kW
Wydajność znamionowa R22, Zakres B [kW]:
0,50 kW
Wydajność znamionowa R22, Zakres N [kW]:
0,50 kW
Wydajność znamionowa R404A, Zakres B [kW]:
0,38 KW
Wydajność znamionowa R404A, Zakres N [kW]:
0,38 KW
Wydajność znamionowa R407C, Zakres N [kW]:
0,50 kW
Wydajność znamionowa R507, Zakres B [kW]:
0,38 KW
Wydajność znamionowa R507, Zakres N [kW]:
0,38 KW
Application:
T2/TE2

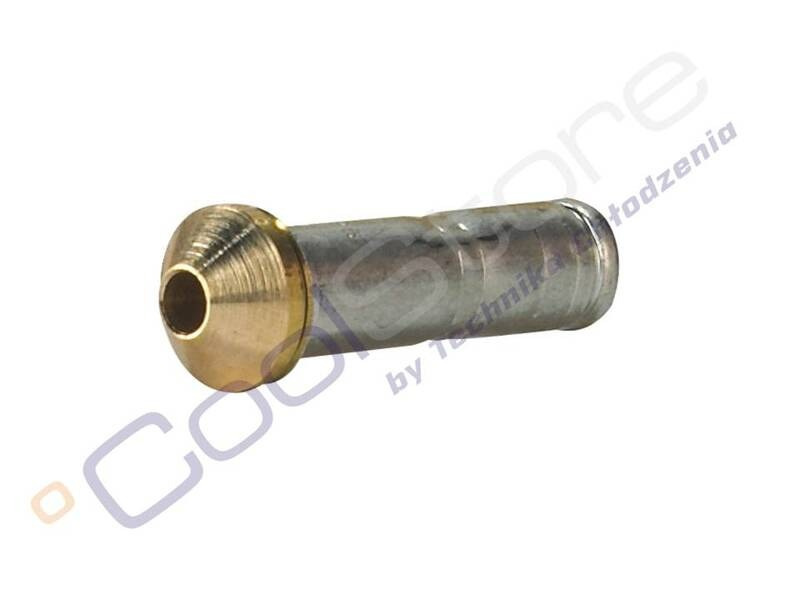

Pictures:
illustrative
Manufacturer/responsible entity in the EU :
Danfoss Headquarters, Nordborgvej 81, 6430 Nordborg, Dania, danfoss@danfoss.com +45 7488 2222
,
EVCO S.p.A. Via Feltre 81, 32036 Sedico (BL) ITALY phone +39 0437 8422 | fax +39 0437 83648 email info@evco.it | web www.evco.it
,
"Termo Plus sp. z o.o. Wilanowska 2, 05-509 Józefosław, Polska +48 15 687 49 91 biuro@esco.eu.com"
