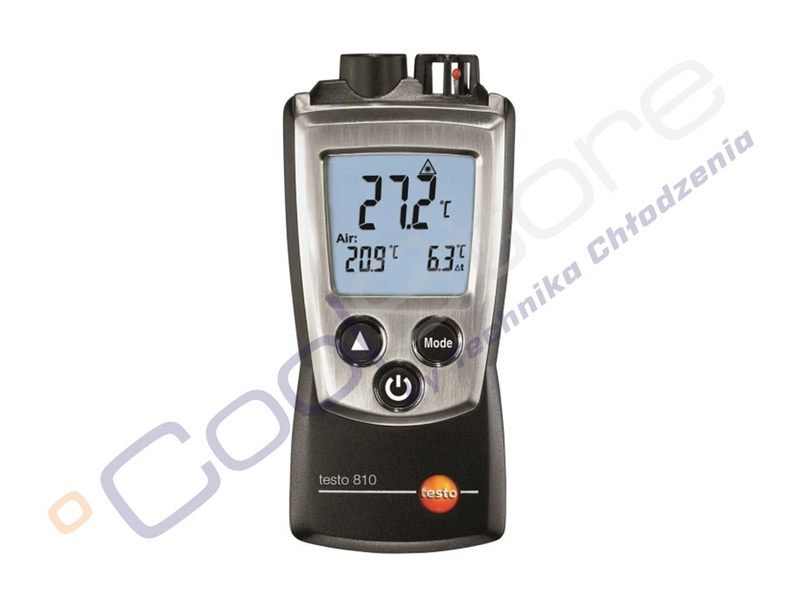

TESTO 810 - PYROMETER 0560 0810
The TESTO 810 is a modern, compact non-contact pyrometer designed for fast and accurate temperature measurements in service, technical diagnostics, and HVAC applications. It combines two functions – surface temperature measurement using infrared (IR) technology and ambient temperature measurement via an NTC sensor – allowing not only quick readings but also instant comparison between air and object temperatures. It is the perfect solution for installers, service technicians, HVAC specialists, as well as for industrial process monitoring or evaluating building thermal insulation.
The IR measurement range is from –30 °C to +300 °C, making the device ideal for monitoring both heating elements and refrigeration applications. The pyrometer offers high measurement accuracy: ±2.0 °C ±1 digit in the range –30…+100 °C and ±2 % of reading beyond this range. Its fast response time (0.5 s), 0.1 °C resolution, and 1-point laser sight with 6:1 optics allow precise measurements even from a distance, without direct contact with the target surface.
In addition to its pyrometer function, the TESTO 810 also measures ambient temperature from –10 °C to +50 °C with ±0.5 °C accuracy. The device automatically calculates the temperature difference between the surface and the surrounding air, which significantly speeds up identifying heat loss, locating thermal bridges, or assessing insulation effectiveness. Additionally, the HOLD, MIN/MAX, and temperature difference display functions increase the device’s versatility in everyday use.

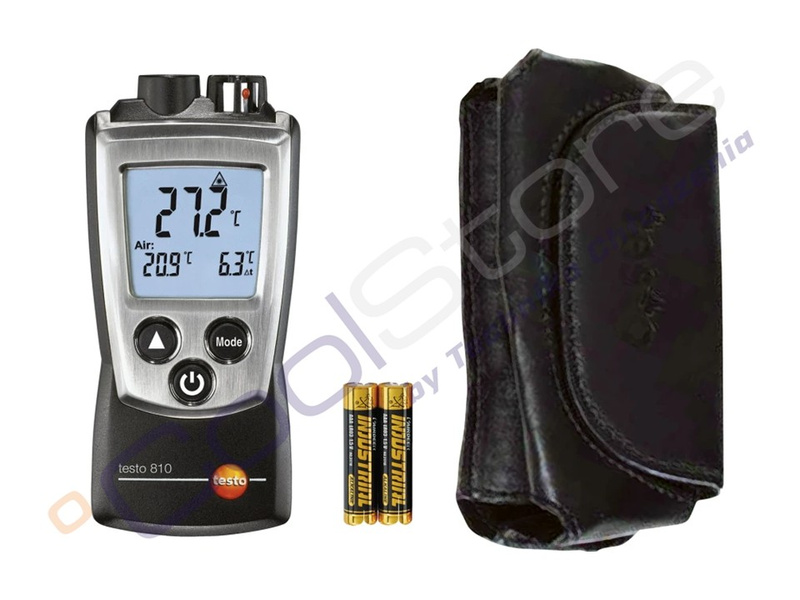

The TESTO 810 pyrometer is designed for mobility and durability. Its compact dimensions (119 × 46 × 25 mm) and lightweight design (90 g including batteries) make it easy to carry anywhere, while the IP40 protection class ensures safe use in industrial and construction environments. Powered by two AAA batteries, it can operate continuously for up to 50 hours, making it an ideal tool for fieldwork. The package includes a protective cap, belt holder, batteries, and a calibration protocol – everything you need to start working immediately.
If you are looking for a device that combines precision, reliability, and portability, the TESTO 810 pyrometer is an excellent choice. It is not only a professional non-contact thermometer for surface temperature measurement but also a versatile diagnostic tool supporting everyday work in service, HVAC installations, construction, and maintenance.
Battery life: | 50 h |
Measuring range (temperature): | -10 do +50 °C |
Accuracy: | ±0,5 °C |
Measuring range (infrared): | -30 do +300 °C |
Accuracy (infrared): | ±2,0 °C (-30 do +100 °C) ,
±2% of measured value remaining range |
Pictures: | illustrative |
Manufacturer/responsible entity in the EU : | Testo Sp. z o.o. ul. Wiejska 2 05-802 Pruszków Polska +48 22 863 74 22 +48 22 863 74 01 testo@testo.com.pl |
