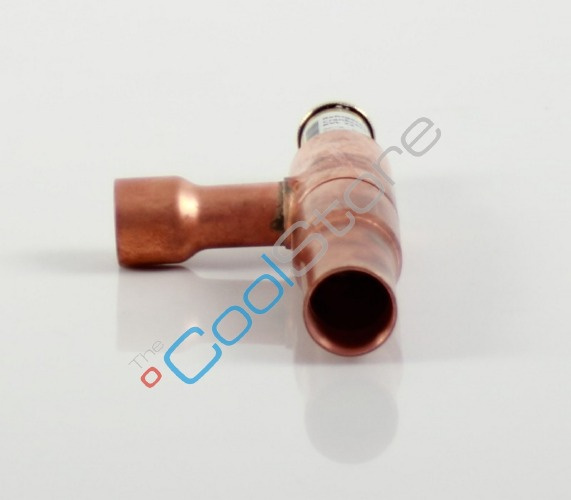

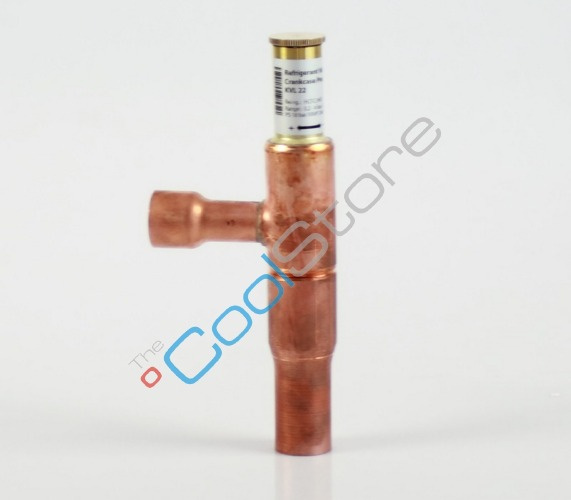

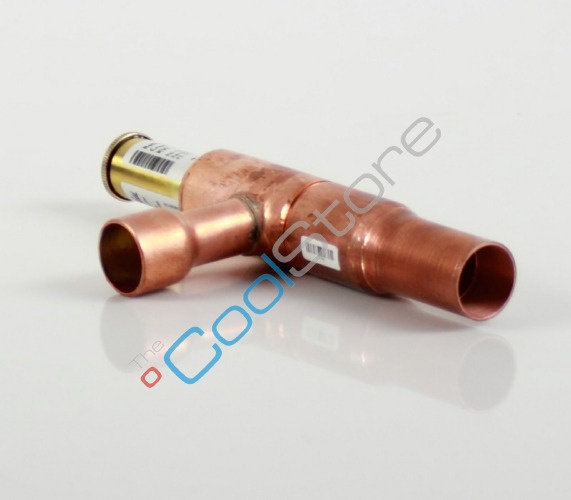

Crankcase pressure regulator Danfoss KVL 22 lut. 034L0045
Crankcase pressure regulator, suction line with copper solder connections, Schraeder valve for pressure testing.
|
Characteristic |
Value |
|
Type |
KVL 22 |
|
Factory setting |
2,00 bar |
|
Inlet connection type |
SOLDER, ODF |
|
Inlet size |
7/8" |
|
Inlet size |
22 mm |
|
Kv value [m³/h] |
14.09 |
|
Max. Test Pressure |
28,0 bar |
|
Max. Working Pressure |
18,0 bar |
|
Medium temperature range |
-45 - 105 °C |
|
Outlet connection type |
SOLDER, ODF |
|
Outlet size |
7/8" |
|
Outlet size |
22 mm |
|
Rated capacity R134a |
5,30 kW |
|
Rated capacity R22 |
7,10 kW |
|
Rated capacity R404A/R507 |
6,30 kW |
|
Rated capacity R407C |
6,50 kW |
|
Refrigerant(s) |
HCFC |
|
Refrigerant(s) |
HFC |
|
Regulating range |
0,2 - 6,0 bar |
Tech specs:
