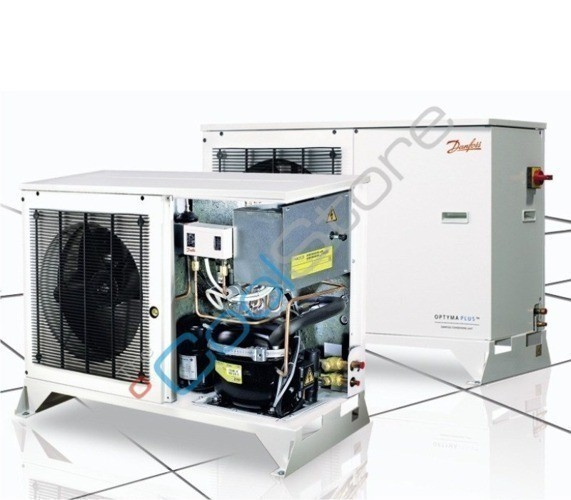

Agregat skraplający Danfoss Optyma OP-MPHM018SCP00G

  • OPTYMA PLUS™ – ciche agregaty skraplające do szybkiej instalacji. Łączy w sobie wysoką wydajność przy małych gabarytach jednostki, cichą pracę i obudowę odporną na warunki atmosferyczne.
  • Agregat skraplający Danfoss Optyma OP-MPHM018SCP00G
Producer: DANFOSS
Product code: AGDA_405
Series:Danfoss_38_40
2 064,19 €
/ pc.
1 678,20 €
net / pc.
Add to wish list

Agregat skraplający Danfoss Optyma OP-MPHM018SCP00G

DANE TECHNICZNE



Charakterystyka Wartość
Typ OP-MPHM015
Sprężarka SC15MLX
Zasilanie 230V / 1 faza / 50Hz
Przyłącze ssawne 3/8"
Przyłacze tłoczne

3/8"
Waga 51 kg
Wymiary (wys.xszer.xdł.) 652x906x356 mm
Średnica went. 1x356 mm
Pobór mocy przy temp. parowania -10ºC / 5ºC 910 W / 1120 W
Objętość zbiornika [l]
 1,3

Warunki testu: EN 13215.
Przegrzanie czynnika na ssaniu 10K (114X3356: 20K przy -45°C).
Wydajność dla temperatury otoczenia 32°C.
Wydajności dla innych wartości temperatur otoczenia – patrz literatura techniczna.


Temp. otoczenia Wydajność chłodnicza [W]
-20ºC -15ºC -10ºC -5ºC 0ºC 5ºC 10ºC
27ºC 1010 1280 1590 1970 2410 2920 -
32ºC 900 1140 1440 1790 2200 2670 -
38ºC 770 990 1250 1560 1930 2370 -
43ºC - 860 1090 1370 1710 - -
