TESTO 310 II EN – FLUE GAS ANALYZER (WITH BT PRINTER) 0563 3107
The testo 310 II EN flue gas analyzer is an advanced measurement tool designed for professionals working with heating installations. The device features two measurement chambers for oxygen (O₂) and carbon monoxide (CO) as well as a temperature sensor integrated into the flue gas probe. These sensors allow precise determination of gas concentrations in flue gases and the temperature of both flue gases and the surrounding environment. Based on these readings, the analyzer calculates all relevant performance parameters, such as CO₂ content, boiler efficiency, and flue gas losses. This makes the testo 310 II EN an indispensable tool for heating system technicians, enabling accurate and rapid diagnostics regardless of the user’s experience level. The device is certified according to DIN EN 50379-1, -3, ensuring professional-grade reliability in everyday use.
Its compact and ergonomic design provides ease of use even in challenging working conditions. A simple user interface and menu with four measurement modes – flue gas, draft, ambient CO, and pressure – allow intuitive navigation and quick access to measurement results. All data is displayed on a high-resolution graphic screen, which can be fully customized to suit individual user preferences, increasing convenience and efficiency. An additional practical feature is the ability to attach the analyzer to metal surfaces, such as burners, using built-in magnets, freeing the user’s hands during operation and enhancing overall workplace ergonomics.
The testo 310 II EN is built for demanding work environments. Its robust housing protects the device from dirt and mechanical damage, while rapid sensor zeroing in just 30 seconds, an easily replaceable probe filter, and a practical condensate trap ensure long-term reliability and durability. Operation via the testo SmartApp mobile application enables remote control and configuration of the device, further enhancing comfort and operational efficiency. The analyzer is suitable for both routine maintenance and more complex diagnostic measurements, providing versatile functionality for heating system professionals.

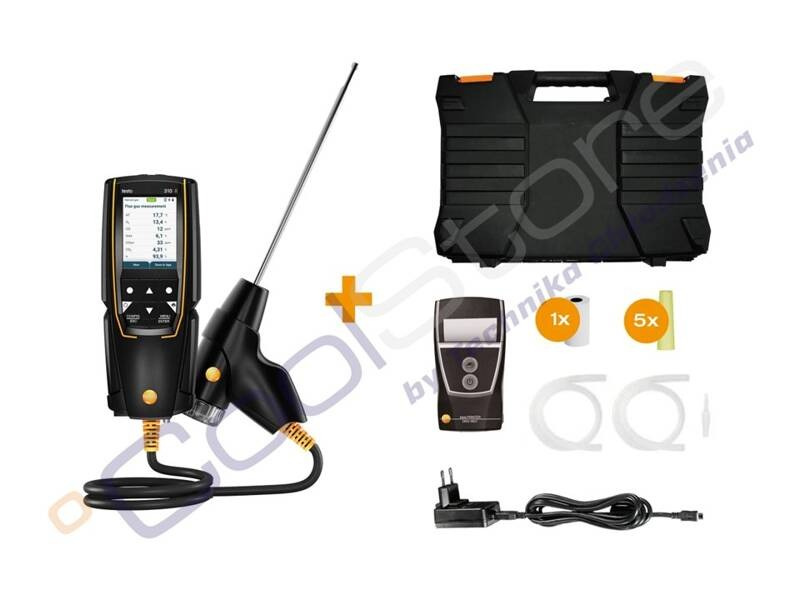

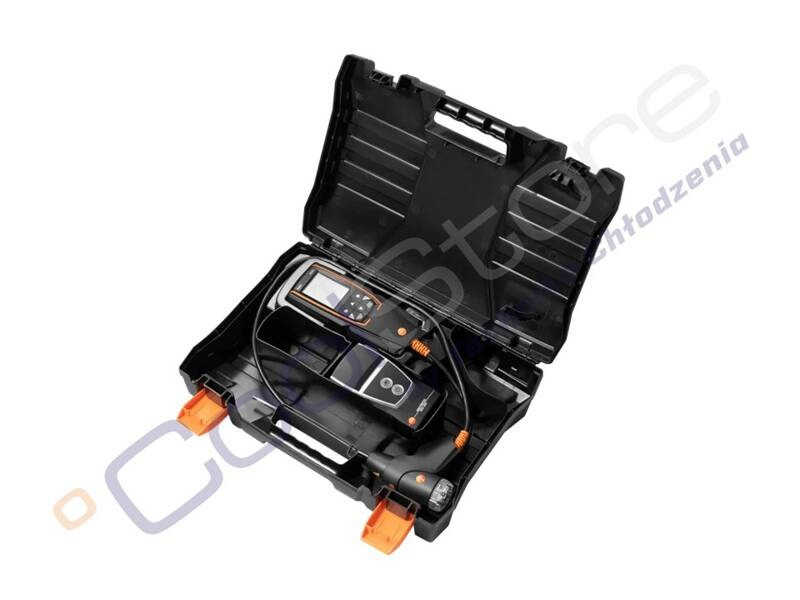

Measurement results can be transmitted to the optional Testo printer via Bluetooth®/IRDA, allowing immediate on-site report printing. Alternatively, data can be saved and sent via email. The kit includes a complete set of accessories: the analyzer with calibration protocol, a 180 mm flue gas probe with cone, transport case, mains power supply with cable, silicone hose for pressure measurement, particulate filters, thermal paper roll for the printer, and USB-C cable. Thanks to these features, the testo 310 II EN provides a fully equipped, ready-to-use solution for professionals performing service, inspection, and diagnostics of heating systems.
Ogólne dane techniczne drukarki BLUETOOTH®/IRDA | |
| Drukarka na podczerwień: | Bluetooth® / IRDA |
| Czas ładowania drukarka: | 6 - 8,5 h |
| Temperatura składowania drukarka: | temperatura przechowywania akumulatora: 0 do +35 °C ,
temperatura przechowywania urządzenia: -20 do +50 °C |
Temperature - Type K TC | |
| Measuring range: | -20 do +400 °C |
| Accuracy: | ±1.5 % of mv (> 100 °C) ,
±1 °C (-20 to +100 °C) |
| Resolution (DC current): | 0,1 °C |
| Reaction timee: | < 50 sek. |
Flue gas O₂ | |
| Measuring range O₂: | 0 do 21 % obj. |
| O₂ measurement accuracy: | ±0,2 % obj. |
| Measurement resolution O₂: | 0,1 % obj. |
| Reaction time t₉₀: | 30 sek. |
Flue Gas Draft | |
| Measuring range (differential pressure - flue gas draft): | -20 do +20 hPa |
| Accuracy (differential pressure - flue gas draft): | ±1,5 % mierz.wart. (-20 do -3 hPa i +3 ... +20 hPa) ,
±0,03 hPa (-3 do -0,6 hPa i +0,6 ... +3 hPa) ,
±0,02 hPa (-0,6 do +0,6 hPa) |
| Resolution (Differential Pressure - Exhaust Gas Draft): | 0,01 hPa |
Efficiency | |
| Measuring range (flue gas degree of effectivity, Eta (calculated)): | 0 to 120 % |
| Resolution (flue gas degree of effectivity, Eta (calculated)): | 0,1 % |
Flue gas loss (calculated) | |
| Measuring range (flue gas loss): | 0 to 99,9 % |
| Resolution (flue gas loss): | 0,1 % |
Pressure measurement | |
| Measuring range (pressure measurement): | -40 do +40 hPa |
| Accuracy (pressure measurementt): | ±1 % mierz.wart. (remaining measuring range) ,
±0,5 hPa (0 do 50 hPa) |
| Resolution (pressure measurement) : | 0,1 hPa |
Flue gas CO (without H₂-compensation) | |
| Measuring range (CO measurement (without H₂ compensation): | 0 do 4000 ppm |
| Accuracy (CO measurement (without H₂ compensation): | ±5 % mierz.wart. (401 do 2000 ppm) ,
±20 ppm (0 do 400 ppm) ,
±10 % mierz.wart. (2001 do 4000 ppm) |
| Resolution (CO measurement (without H₂ compensation)): | 1 ppm |
| Response time t₉₀ (CO measurement (without H₂ compensation)): | 60 sek. |
Ambient CO | |
| Measuring range (ambient CO measurement (with combustion probe): | 0 do 4000 ppm |
| Accuracy (ambient CO measurement (with combustion probe): | ±5 % mierz.wart. (401 do 2000 ppm) ,
±20 ppm (0 do 400 ppm) ,
±10 % mierz.wart. (2001 do 4000 ppm) |
| Resolution (ambient CO measurement (with combustion probe): | 1 ppm |
| Reaction time: | 60 sek. |
General Specifications | |
Weight: net | Approx. 660 g |
| Dimensions: | 203 x 83 x 46 mm |
| Operating Temperature: | -5 to +45 °C |
| Protection class: | IP40 |
| Battery life: | > 8 h (pump on, 20 °C ambient temperature) |
| Display function: | graficzny wyświetlacz 7-liniowy |
| Power supply: | 1500 mAh battery, 5V/2A AC adapter |
| Maximum humidity: | 0 to 80 %RH |
| System requirements: | requires iOS 13.0 or later; requires Android 8.0 or later; mobile device with Bluetooth 4.0 required |
| Radio Range: | 60 m |
| Storage temperature : | -20 to +50 °C |
| Producent code: | 0563 3107 |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | Testo Sp. z o.o. ul. Wiejska 2 05-802 Pruszków Polska +48 22 863 74 22 +48 22 863 74 01 testo@testo.com.pl |
